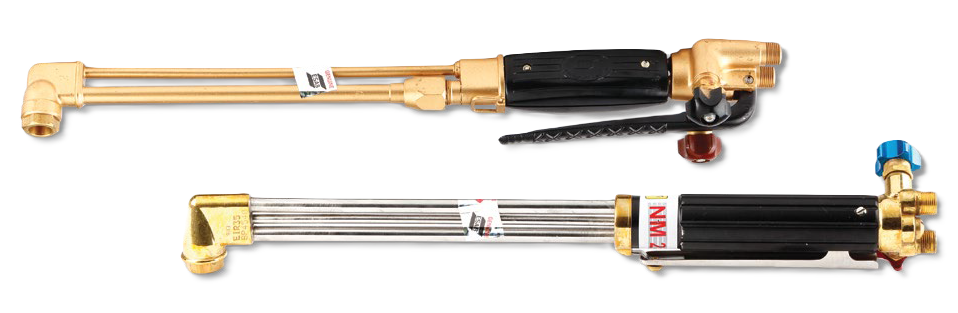

Cutogen 5 / NM 250 / NM 400
.png)
Key Features
- Injector & Nozzle Mix Design
- Forged Brass Construction
- Rugged & Well-Balanced Design
- Precise Valve Design for Smooth Gas Flow
- Specially Designed Nozzles for Efficient Cutting
- BIS Certified for Safety
ESAB Cutting Blowpipes are well-balanced with rugged design and offer both Injector and Nozzle Mix design hand cutting torches.
The forged brass construction of body and angle head ensure high strength and long life. Its precise valve design ensures smooth gas flow
and fine gas control. The specially designed nozzles ensure non-turbulent efficient gas flow to provide smooth clean cuts with minimal kerf
loss and long life. The strict quality assurance protocols enforce the highest level of priority on Safety and all products are BIS certified.
| Model | Gas Service | Mixing Type | Cutting Capacity (mm) | Suitable Head Angle | Suitable Length (mm) | Outlet Connection |
| CUTOGEN 5 Cutting Torch | Oxygen and Fuel (Acetylene/Propane) | Injector Mix | 300 | 90°/180° | 450/600/900/1200/1500/1800 | 3/8 BSP RH & LH M |
| NM Cutting Torch | Oxygen and Fuel (Acetylene/Propane) | Nozzle Mix | 300 | 90°/75° | 450/600 | 3/8 BSP RH & LH M |
| Metal Thickness | Acetylene (ANM / A) | Propane (PNM / COOLEXLPG) |
| 3mm | ANM 1 | PNM 1 |
| 6mm | ANM 2 | PNM 2 |
| 10mm | ANM 3 | PNM 3 |
