FRABRICATOR ET 410iP
Heavy-Duty HF TIG Industrial Inverter Welder
Frabricator ET 410iP is an IGBT based inverter - controlled power source with rugged & reliable design for HF TIG Pulse welding and MMA (Stick) welding for heavy frabrication.

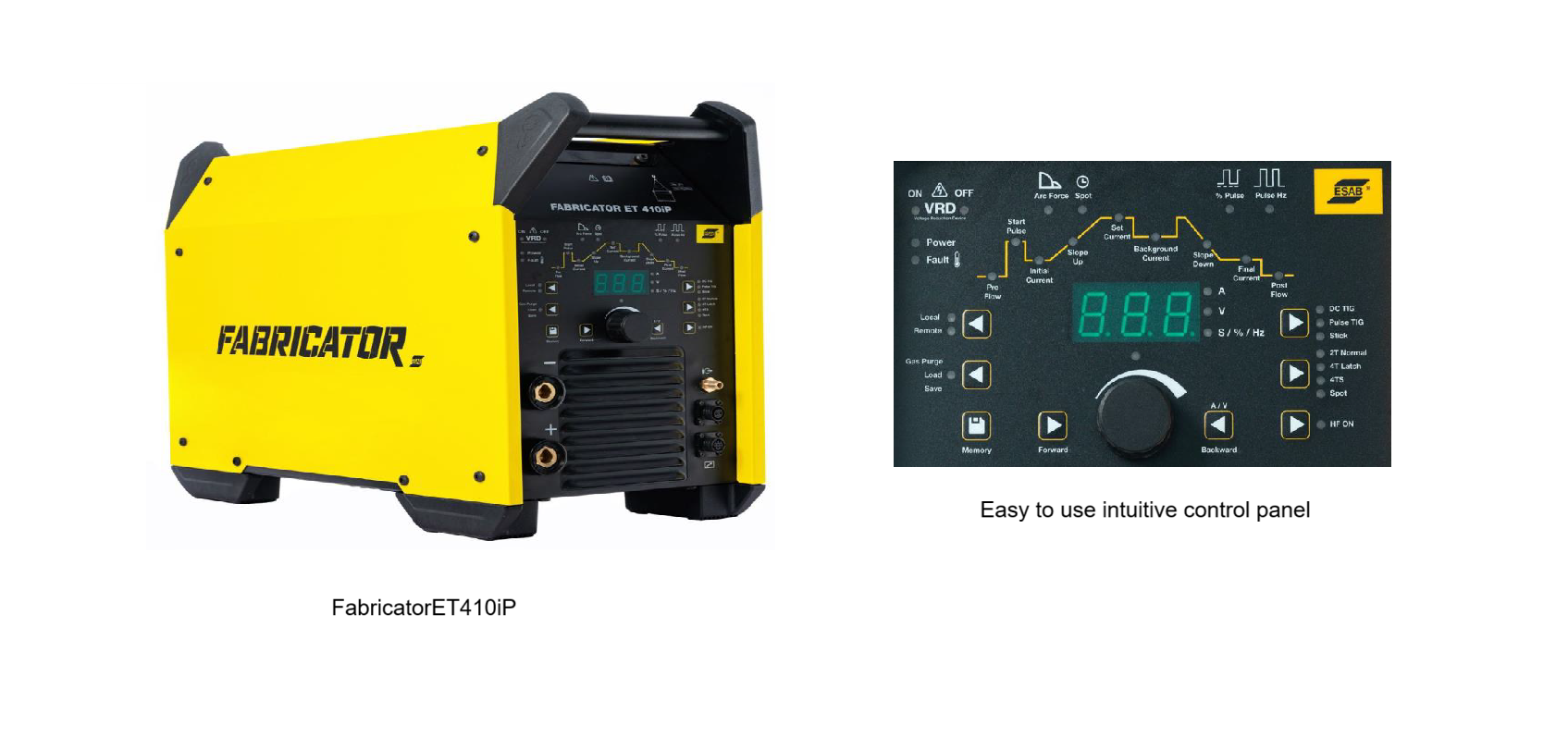

.png)
SALIENT FEATURES
- Intuitive Control Panel - Easy-to-set Pulse for every application; background current from 10 to 90% & freqency from 0.5 to 250Hz
- In-built high Frequency unit for easy arc initiation and Start Pulse (micro pulse)
- User-friendly modes - Spot for tack welds and 4TS for need based Pulsing.
- Voltage Reduction Device (VRD) for enhanced Safety .
- Wide mains voltage tolerance for stable welding.
- IP 23S Enclosure class.
Industry
- Pipe Workshops
- Pressure Vessels
- Oil & Gas
- General Fabrication
- Shipyards
FABRICATOR ET 410iP
| Specifications | |
|---|---|
| Mains Supply, V / Ph, Hz | 400 +/- 20% / 3, 50/60 |
| FuseSlow, A | 32 |
| Rated KVA | 21 |
| Output Range (TIG / MMA), A | 5 - 410 / 30 - 410 |
| Duty Cycle 60% (TIG / MMA), A | 410 |
| Duty Cycle 100% (TIG / MMA), A | 310 |
| Open Circuit Voltage, V | 76 |
| VRD Voltage, V max | 15 |
| Idle Power Consumption | 40 W (VRD OFF) / 15 W (VRD ON) |
| Pulse Frequency, Hz | 0.5 – 250 |
| Pulse Background Current setting range , % | 10 – 90 |
| Efficiency, % | > 85 |
| Protection Class | IP23S |
| Operating temperature, deg C | -10 to +40 |
| Weight, Kg | 38.5 |
| Dimensions (L x W x H), mm | 525 × 280 × 475 |
| Standards of conformity | IEC60974-1 |
| Ordering Information | |
|---|---|
| Description | Part Number |
| Fabricator ET 410iP | 0447101880 |
Fabricator ET 400iP is delivered 2.5m mains cable only.
