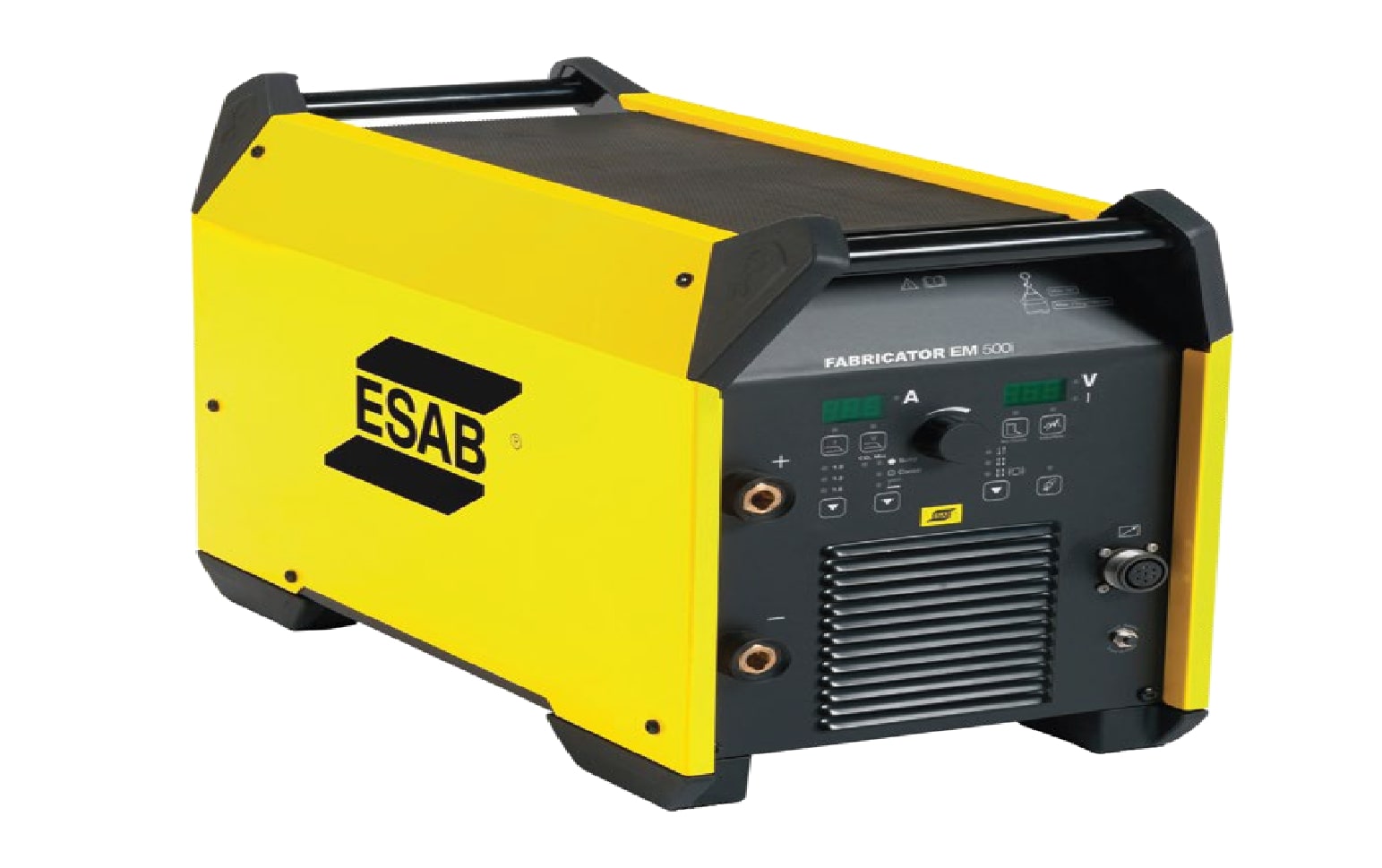

FABRICATOR EM 500i
Fabricator EM 500i is a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed wire-feeder.
 |
 |
 |
||
 |
 |
 |
||
 |
SAILENT FEATURES
- Wide Input voltage sustenance for stable welding output.
- Variable inductance control for better arc performance.
- Energy savings with high power factor, high efficiency and low idle power.
- IP 23 class for outdoor use.
- Insulation Class H for continuous heavy duty usage
- 4 Roll Drive Wire-feeder-smooth and stable wire-feeding
- General Fabrication
- Construction
- Shipbuilding
- Railways
Industry
| Specification | |||
| Mains Supply, V/ Ph, HZ | 380-440( ± 10%)/3, , 50/60 | ||
| Permitted Load at 60% Duty Cycle (MIG/MMA), A | 500 | ||
| Permitted Load at 100% Duty Cycle (MIG/MMA), A | 390 | ||
| Current Range (MIG/ MMA), A | 15.5-39 | ||
| Efficiency at Max Current, % | 87 | ||
| Power Factor Max Current | < 50 | ||
| Dimensions L x W x H, mm | 710 × 325 × 470 | ||
| Weight, Kg | 62 | ||
| Enclosure Class | IP23S | ||
| Application Class | S | ||
| Insulation Class | H | ||
| Wire- Feeder | Feed 364 | ||
| Wire-Feed Drive | 4Roll | ||
| Wire Feed Speed, m/min | 2.0-20.0 | ||
| Wire Spool Capacity, kg | 18 | ||
| Max Spool Diameter, mm | 300 | ||
| Wire Dimensions, mm MS/ SS/ AL Cored Wire |
1.0-1.6 0.8-1.6 |
||
| Ordering Information | |||
| Description | Part Number | ||
| Fabricator EM 500i | 0700020002 | ||

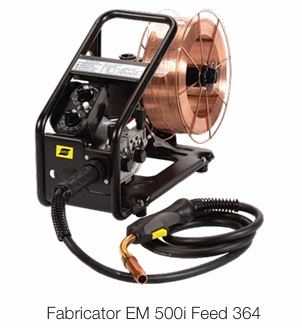

| Fabricator EM 500i Feed 364 | 0700020003 | ||
| Cable set 5m, 7pin, 70mm2- Feed 364 | 0349490624 | ||
| Cable set 10m, 7pin, 70mm2- Feed 364 | 0349490608 | ||
| PSF 515, 5m 2 | 0700025052 | ||
| DURA CO2 | 4330180500 | ||
| CO2 Heater + Core 110V (ALD) | 0651689045 | ||

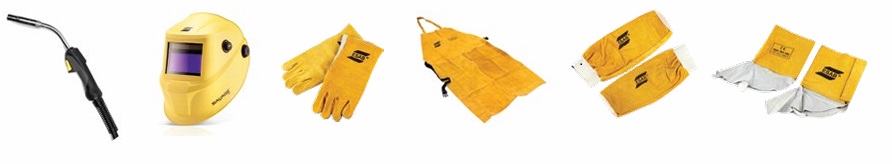

| Savage A40 9-13 Yellow | 0700000481 | ||
| Welding Hand Gloves (5 pair) | 2001005011 | ||
| Welding Apron (Large) | 2001007001 | ||
| Welding Sleeve | 2001007002 | ||
| Welding Leg Guard | 2001007003 | ||
| Note : Fabricator EM 500i is delivered with 4.5 mains cable, 5m return cable with earth clamp | |||
Click here to view manual of Fabricator EM500i in PDF format
(640 KB)
