Origo™ Tig 4300iw AC/DC

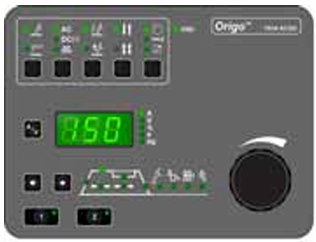

TA24 AC/DC For demanding TIG welding application
Designed for high quality TIG-welding
Origo™ Tig 4300iw AC/DC welding power source
provide excellent arc strike and consistent, stable arc in
both DC and AC modes.
- Designed for quality TIG-welding in all types of material.
- QWave™-enables AC welding with high arc stability and low noise.
- AC Frequency and Balance control- Optimises weld pool
- Electrode preheating – excellent start and extended electrode life time
- DC Pulsed TIG welding- easy control of heat input and the weld pool.
- DC Micro Pulse – minimize heat effected zone especially on thin sheets
- ESAB LogicPump – ELP, automatic start of the cooling unit by connection of a liquid-cooled torch
Application
- Repair and maintenance
- Pipe and tube manufacturing
- General fabrication and civil construction
- Automotive
- Process industry
- Shipbuilding and offshore
- Transport and mobile machinery
| Technical Data | TIG 4300IW |
| Setting range TIG AC/DC | 4 -430 |
| Setting range MMA | 16 -430 |
| Mains supply, V/Ph | 400/3 |
| Fuse type C MCB, A | 25 |
| Mains cable, Ømm2 | 4 x 4 |
| Maximum output DC/AC | |
| at 40% duty cycle, TIG , A/V | 430/27.2 |
| at 60% duty cycle, TIG, A/V | 400/26 |
| at 100% duty cycle, TIG, A/V | 315/22.6 |
| Slope up, sec | 0-10 |
| Slope down, sec | 0-10 |
| Gas post-flow, sec | 0-25 |
| Pulse frequency DC, sec | 0.01-2.5 |
| Frequency AC, Hz | 10-152 |
| AC balance, % | 50-98 |
| Open circuit voltage, V DC | 83 |
| Energy save mode, W | 75 |
| Power factor at 100% , at TIG mode | 0.89 |
| Operating temperature, C | -10 to +40 |
| Continual sound pressure at no load, db (A) | < 70 |
| Efficiency at 100%, at TIG mode, % | 76 |
| Enclosure class | IP 23 |
| Insulation class (Main trafo.) | H |
| Standards: | IEC/EN 60974-1, -3, -10 |
| External dimensions mm, lxwxh | 625x394x776 |
| Weight, kg incl. cooling unit | 95 |
| Water cooling unit | Integrated |
| Cooling capacity, kW, l/min at 40 C | 2.0/1.0 |
| Coolant volume,I | 5.5 |
| Max flow, l/min | 2.0 |
| Max pressure, 50/60 Hz bar | 3.4 |
| External dimension, mm l x w x h | - |
| Weight, kg | - |
| Ordering Information | |
| Description | Part number |
| Origo™Tig4300iw AC/DC, TA24 AC/DC | 0460 100 880 |
| Trolley 4 wheel | 0458 530 881 |
| MultiVoltageunit,(3x208/230/400/460/475/575V, 50/60 Hz) | 0459 145 880 |
| Handle inclmountingscrews for separate installation(Completeset = 2) | 0459 307 881 |
| Remote control AT 1 CAN | 0459 491 883 |
| Remote control AT 1 CoarseFine CAN | 0459 491884 |
| T1 Foot CAN incl 5 m cable | 0460 315 880 |
| Remote interconnection cables: 5m CAN | 0459 554 880 |
| Remote interconnection cables: 10m CAN | 0459 554 881 |
| Remote interconnection cables: 15m CAN | 0459 554 882 |
| Remote interconnection cables: 25m CAN | 0459 554 883 |
| TIG torches: TXH ™400w 4m OKC 50 | 0460 014 840 |
| TIG torches: TXH ™400w 8m OKC 50 | 0460 014 880 |
| TIG torches: TXH ™400w HD 4m OKC | 0460 014 841 |
| TIG torches: TXH ™400w HD 8m OKC | 0460 014 881 |
| TIG torches: TXH ™400wr 4m OKC | 0462 014 841 |
| TIG torches: TXH ™400wr 8m OKC | 0462 014 881 |
| Remoteadapter kit inclholderand 0.25m interconnectioncablefor remoteversions | 0459 491 912 |
For additional torches, see separate fact sheet
Delivery content: 5 m mainscableinclplug, 2 m gas hoseincl. 2
hoseclampsand returncable5 m inclearthclamp.
