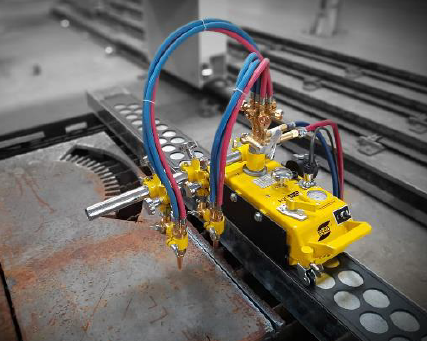

Dual Torch Portable Cutting Machine
Compact and Robust
.png)
The versatile PUG Pro is a dual torch heavy duty tractor-type portable cutting machine with precise controls. Its outstanding design and construction features give trouble-free operation for straight, circle and bevel cutting applications.
- Two torches for parallel and bevel cuts
- Rugged design for cutting upto 200mm
- Easy manual positioning with Clutch Lever
- Multi-directional cutting with Rotating valve block
- Compatibility with all fuel gases
Specifications / Technical data
| Input Power | 220V, 50Hz |
| Cutting Thickness | 200mm |
| Track Length | 1.8m |
| Cutting Width | 80 to 320mm |
| Bevel Angle | 0 to 45° |
| Cutting Speed | 80 to 800mm/min |
| Cutting Torch | Nozzle Mix |
| Weight | 12 Kgs |
Ordering Information
| Part Number | Model | Dimension | Inlet Connection Valve Block |
|---|---|---|---|
| 4320153004 | PUG Pro with Track | 220(H) x 215(W) x 430(L) | 3/8 BSP M RH & LH |
Click here to view manual of Dual Torch Portable Cutting Machine in PDF format
