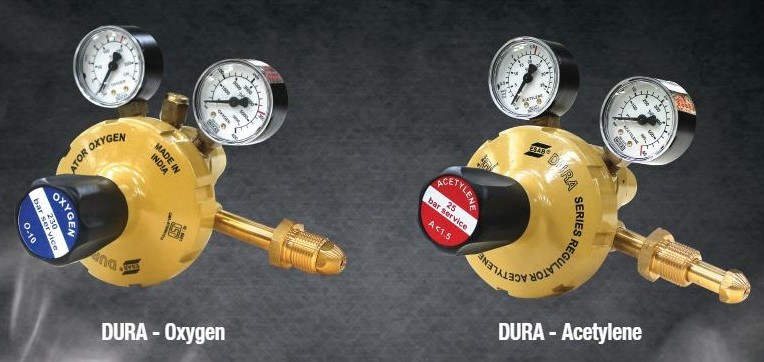

ESAB DURA Regulators
ESAB DURA regulators are offered for the full range of industrial gases for welding & cutting applications. The advanced two-stage design ensures constant delivery pressure without the need for any adjustment with dropping cylinder pressure over the life of the cylinder. The design also ensures full utilization of gas in the cylinder. The forged brass body, Zn-alloy housing cap, stainless steel diaphragm, nylon seat valve, self-resetting safety valve ensures ultimate protection and durability. The stainless steel diaphragm helps withstand stock of full cylinder pressure up to 300 bar. The strict quality assurance protocols enforce the highest level of priority on Safety and all products are BIS certified.
| Model | Gas Service | Inlet Gauge Range (Bar) | Outlet Gauge Range (Bar) | Max. Inlet Pressure (Bar) | Max. Outlet Pressure (Bar) | Max. Flow Rate (LPM) | Inlet Connection | Outlet Connection |
|---|---|---|---|---|---|---|---|---|
| DURA O-10 | Oxygen | 0-400 | 0-16 | 230 | 10 | 1000 | 5/8 BSP RH M | 3/8 BSP RH M |
| DURA A-1.5 | Acetylene | 0-40 | 0-2.5 | 25 | <1.5 | 250 | 5/8 BSP LH M | 3/8 BSP LH M |
| DURA N-10 | Nitrogen | 0-400 | 0-16 | 230 | 10 | 1000 | 5/8 BSP RH M | 3/8 BSP RH M |
| DURA H-10 | Hydrogen | 0-400 | 0-16 | 230 | 10 | 1000 | 5/8 BSP LH M | 3/8 BSP LH M |
| Model | Gas Service | Inlet Gauge Range (Bar) | Outlet Gauge Range (LPM) | Max. Inlet Pressure (Bar) | Max. Flow Rate (LPM) | Inlet Connection | Outlet Connection |
|---|---|---|---|---|---|---|---|
| DURA CO2-35L | Carbon dioxide | 0-400 | 0-50 | 200 | 35 | 0.860x14 WHIT RH F | 3/8 BSP RH M |
| DURA Ar-25L | Argon | 0-400 | 0-50 | 230 | 25 | 5/8 BSP RH M | 3/8 BSP RH M |
