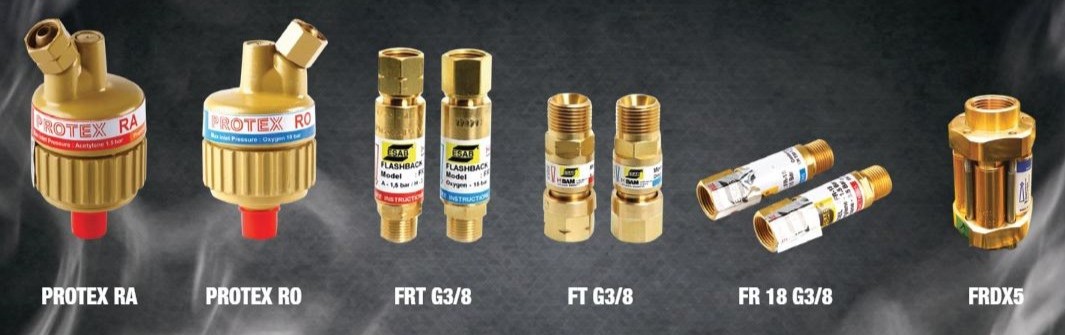

ESAB Flashback Arrestors
Safety
Compact
Reliable
ESAB Flashback Arrestors offer multiple protection options with Non-Return Valve, Flame Arrestor, Thermal Sensitive Cut-off Valve and Pressure Sensitive Cut-off Valve. The large size sinter filters arrest flames with its large surface area without affecting the gas flow rate during operation. The strict quality assurance protocols enforce the highest level of priority on Safety and products are manufactured in compliance with various EN-ISO & BAM standards.
| Model | Mounting | Safety Elements | Gas Service | Max. Working Pressure (Bar) | Inlet Connection | Outlet Connection |
|---|---|---|---|---|---|---|
| PROTEX RO | Regulator End | FA/NV/PV/TV | Oxygen | 10 | 3/8 BSP RH F | 3/8 BSP RH M |
| PROTEX RA | Regulator End | FA/NV/PV/TV | Acetylene/Propane | 1.5/3 | 3/8 BSP LH F | 3/8 BSP LH M |
| FRT G3/8 RH | Regulator End | FA/NV/TV | Oxygen | 25 | 3/8 BSP RH F | 3/8 BSP RH M |
| FRT G3/8 LH | Regulator End | FA/NV/TV | Acetylene/Hydrogen/Propane/Natural Gas | 1.5/3/5/5 | 3/8 BSP LH F | 3/8 BSP LH M |
| FR 18 G3/8 RH | Torch End | FA/NV | Oxygen | 10 | 3/8 BSP RH M | 3/8 BSP RH F |
| FR 18 G3/8 LH | Torch End | FA/NV | Acetylene/Propane | 1.5/3.5 | 3/8 BSP LH M | 3/8 BSP LH F |
| FT G3/8 RH | Torch End | FA/NV | Oxygen | 20 | 3/8 BSP RH M | 3/8 BSP RH F |
| FT G3/8 LH | Torch End | FA/NV | Acetylene/Hydrogen/Propane/Natural Gas | 1.5/3/5/5 | 3/8 BSP LH M | 3/8 BSP LH F |
| FRDX5 G1 RH-F | Line End | FA/NV/TV | Oxygen | 25 | G1 RH-F | G1 RH-F |
| FRDX5 G1 LH-F | Line End | FA/NV/TV | Acetylene/Hydrogen/Propane/Natural Gas | 1.5/3/5/5 | G1 LH-F | G1 LH-F |
| FRDX5 G1/2 RH F/M | Line End | FA/NV/TV | Oxygen | 25 | G1/2 RH F | G1/2 RH M |
| FRDX5 G1/2 LH F/M | Line End | FA/NV/TV | Acetylene/Hydrogen/Propane/Natural Gas | 1.5/3/5/5 | G1/2 LH-F | G1/2 LH-M |
| FRDX5 G3/4 RH F/M | Line End | FA/NV/TV | Oxygen | 25 | G3/4 RH F | G3/4 RH M |
| FRDX5 G3/4 LH F/M | Line End | FA/NV/TV | Acetylene/Hydrogen/Propane/Natural Gas | 1.5/3/5/5 | G3/4 LH-F | G3/4 LH-M |
Click here to view manual of Flashback Arrestors in PDF format
