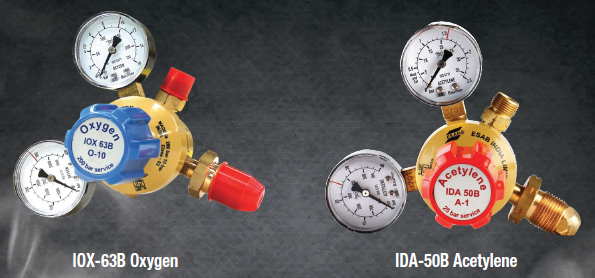

Multi Stage Gas Regulators
.png)
Key Features
Safety
Comfort
Performance
ESAB Multi Stage Regulators are designed to meet the stringent demand of use in shop-floor as well as outdoor conditions with enhanced safety. The time tested fabric reinforced neoprene diaphragm provides superior sensitivity and neoprene bonded seat valve gives proper sealing and long life. The regulators are BIS certified and meet the highest safety standards.
| Model | Gas Service | Inlet Gauge Range (Bar) | Outlet Gauge Range (Bar) | Max. Inlet Pressure (Bar) | Max. Outlet Pressure (Bar) | Max. Flow Rate (LPM) | Inlet Connection | Outlet Connection |
|---|---|---|---|---|---|---|---|---|
| IOX-63B | Oxygen | 0-400 | 0-16 | 200 | 10 | 1000 | 5/8 BSP RH M | 3/8 BSP RH M |
| IDA-50B | Acetylene | 0-40 | 0-2.5 | 25 | 1 | 180 | 5/8 BSP LH M | 3/8 BSP LH M |
Click here to view manual of Multi Stage Gas Regulators in PDF format
(640 KB)
(640 KB)
